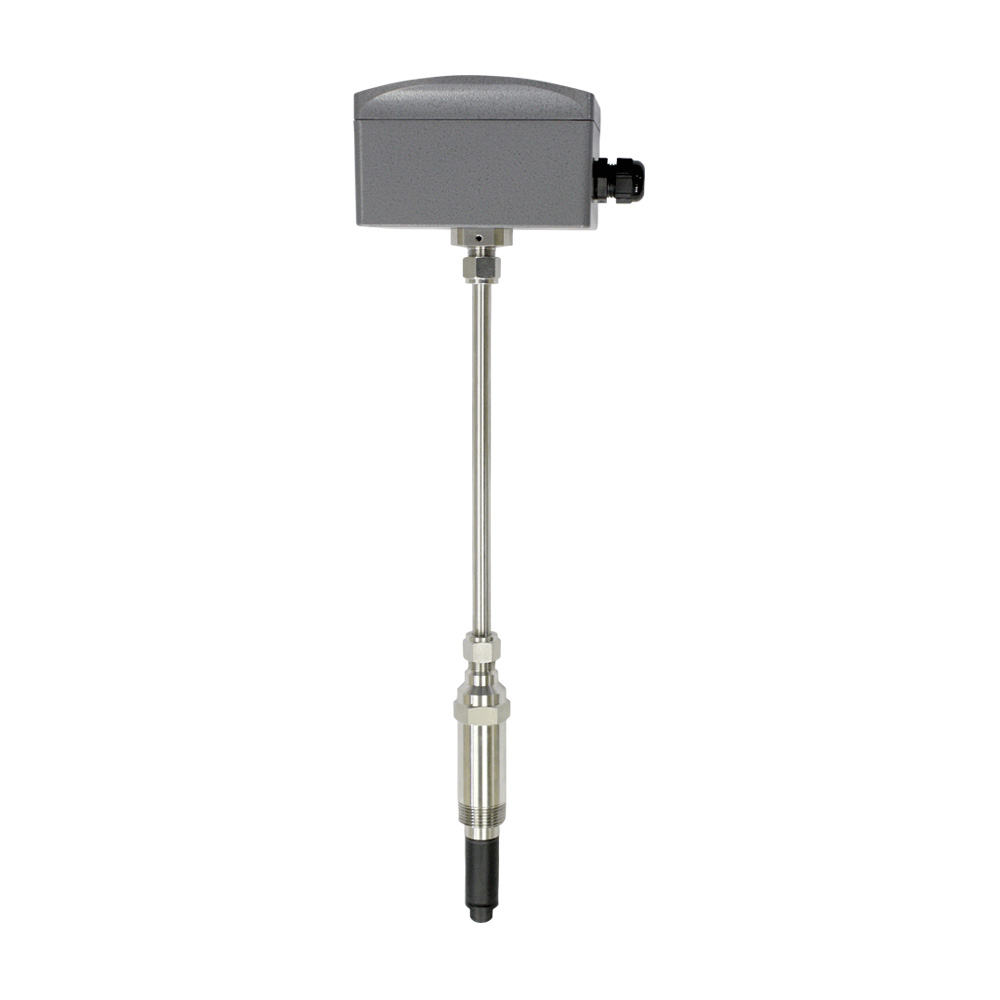

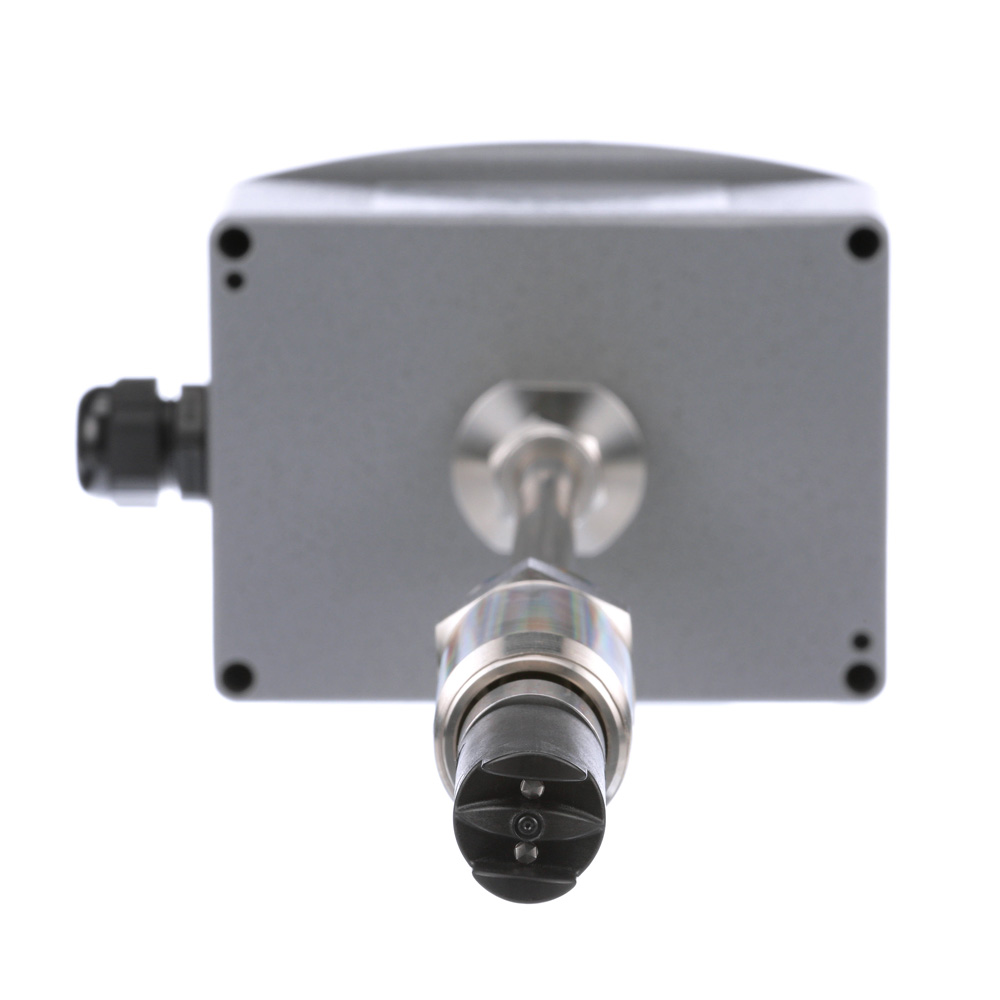

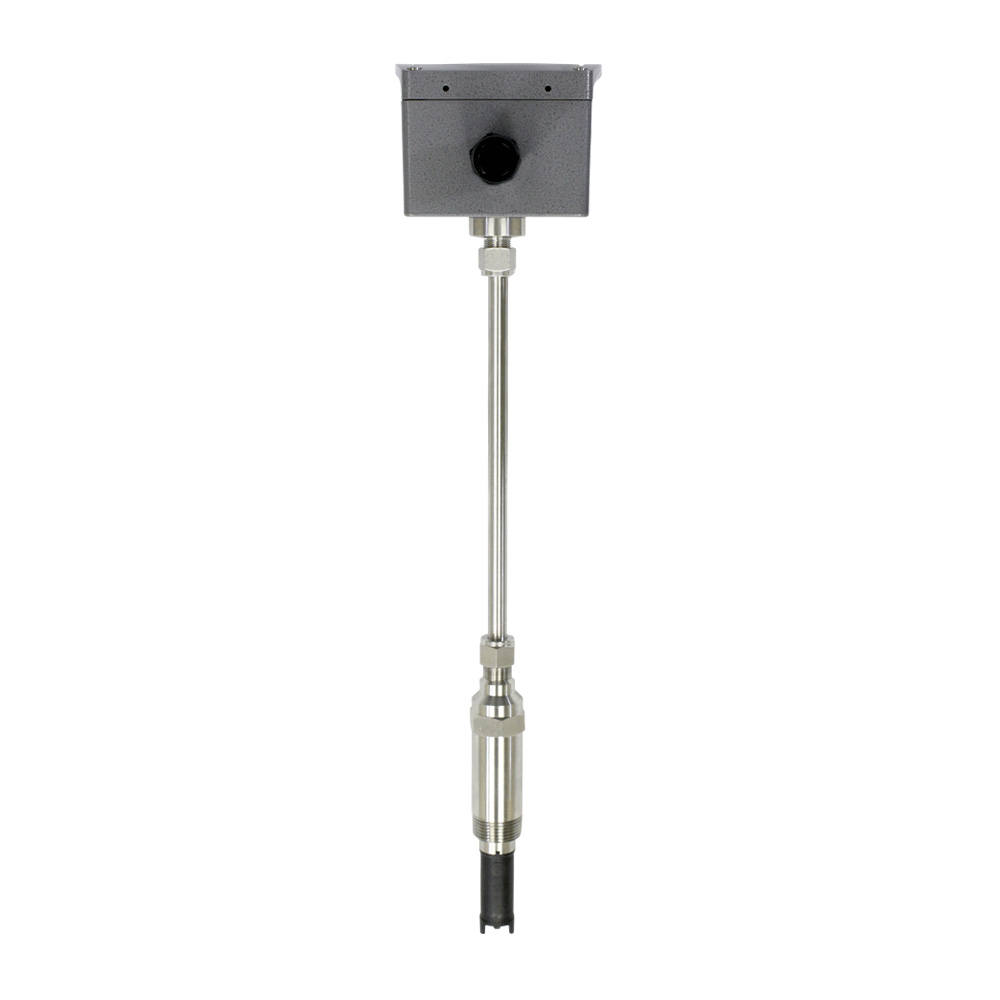

The Series IEF Insertion Electromagnetic Flow Transmitter is an adjustable insertion flowmeter featuring electromagnetic technology that accurately and reliably measures fluid velocity in addition to providing several continuous signal outputs. This series is specifically designed to offer superior performance paired with simple installation and use. One unit is adjustable to fit pipe sizes from 4 to 36" (101.6 to 914.4 mm), and offers several output options including selectable BACnet MS/TP or Modbus® RTU communications protocol over 2-wire RS-485 in addition to the standard analog, frequency and alarm outputs.

Product Applications

• Boiler feed water
• Chilled water
• Open and closed loop condenser water
• Irrigation system
• Process and coolant flow
• Ground water remediation
• Chemical processing
• Pump protection
• Wastewater
• Mining

Features

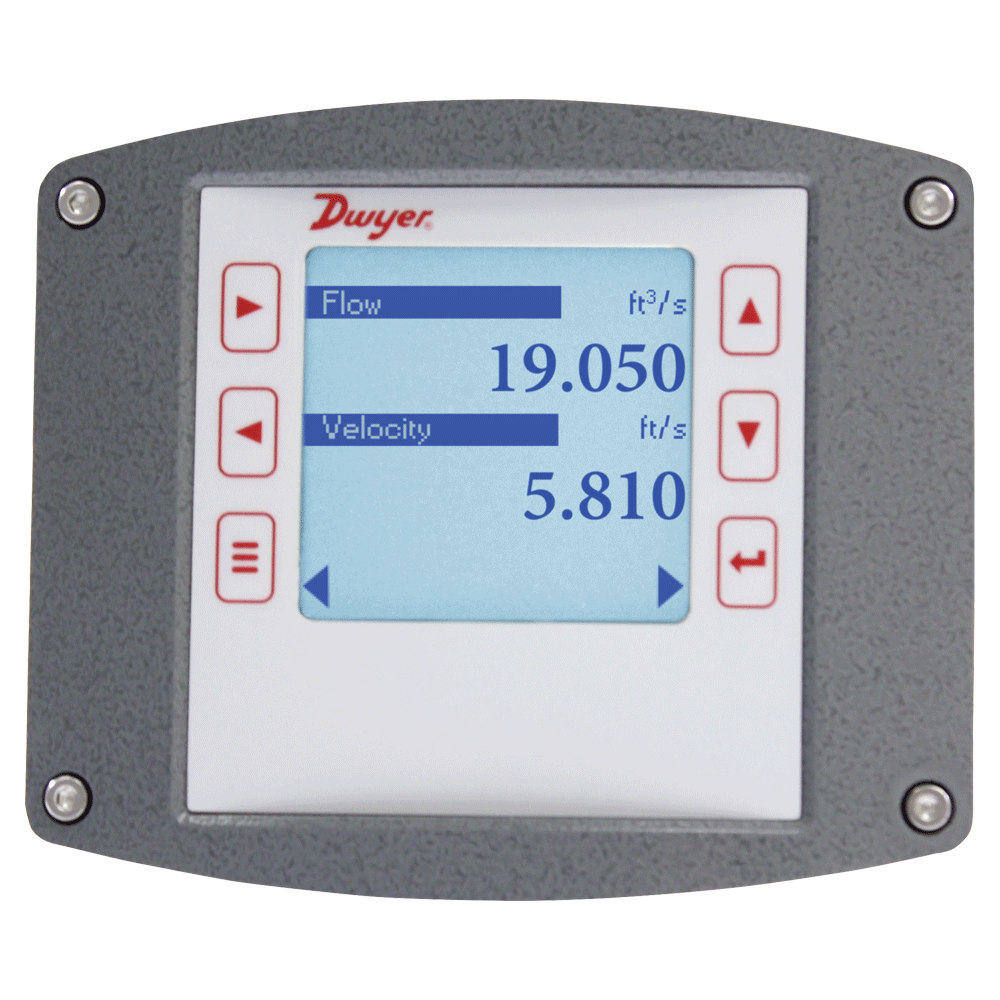

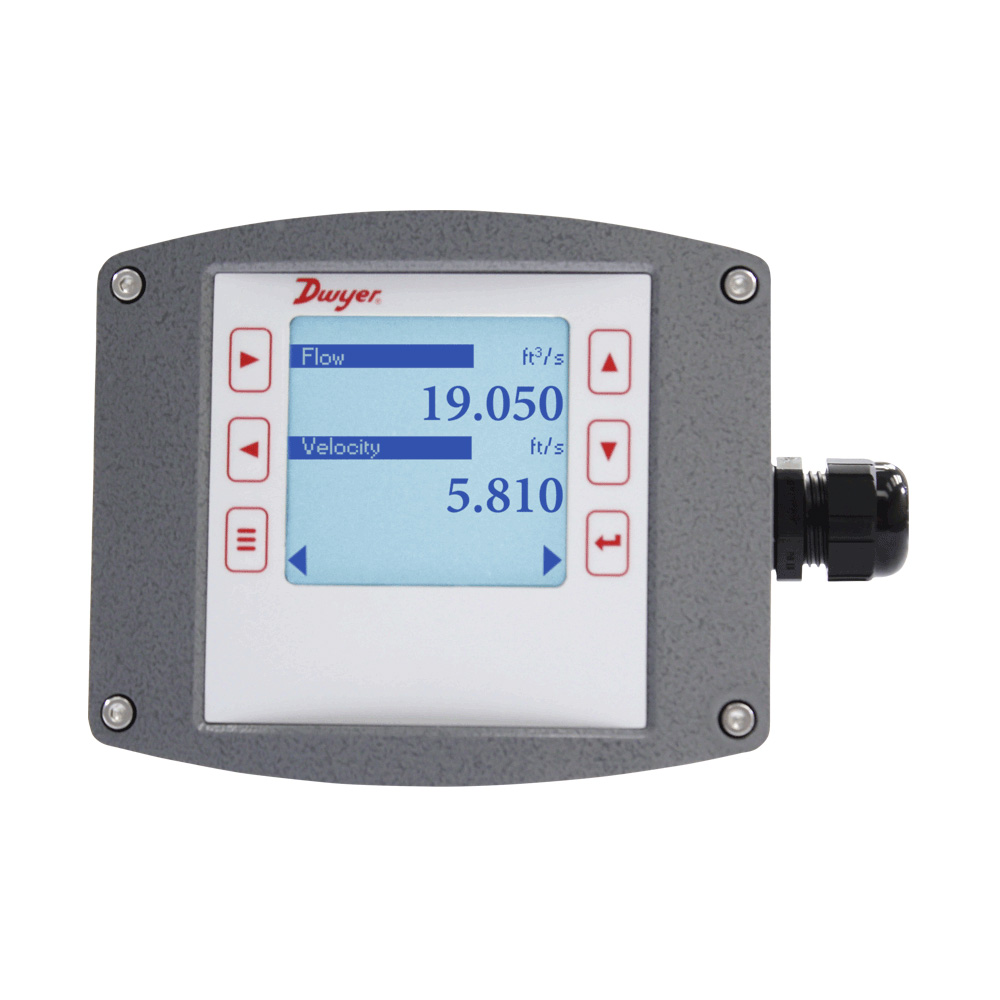

• Meet application requirements with field configurable setup displays (-LCD integral option or remote accessory A-IEF-DSP), which accommodate a variety of application configurations with one model through multiple display configurations i.e. pipe size, pipe material, liquid type, analog output, pulse/frequency output, alarm outputs, communication outputs, damping, and calibration factor
• Maintain system efficiency with high performance accuracy that is maintained through changes in temperature, density or viscosity
• Quick and easy ordering and set up with Setup Wizard and installation tool that are simple to use and allow for precise installation
• Save time with accessory setup kit A-IEF-KIT that ensures exact installation application depth with included thickness gage and measuring tape
• Reduced costs, long product life, and minimal maintenance requirements with no moving parts to wear or break and electrodes that discourage fouling
• Minimize installation costs with isolation valve accessory options to allow for installation in operational systems via hot-tap kit or easy removal without system downtime
• Required documents included with NIST traceable pass/fail verification certificate included standard for Carbon Steel Schedule 40 pipes sized 4" (102 mm), 6" (150 mm), 8" (200 mm)

Specifications

• Field Configurable, High Accuracy, BACnet or Modbus® Protocol

• Service : Compatible clean or dirty non coating, conductive liquids.

• Range : 0 to 20 ft/s (0 to 6 m/s)

• Accuracy : 1% Full Scale & 1% of Reading

• Temperature Limits : Ambient: -20 to 160°F (-29 to 71°C); Process: 15 to 250°F (-9 to 121°C); Storage: -40 to 185°F (-40 to 85°C).

• Process Connection : 1˝ NPT or BSPT

• Pressure Limits : 400 psi (27.6 bar) @ 100º F (37.8°C).

• Outputs : Analog: 4-20 mA, 0-5 V, 0-10 V or2-10 V (display selectable)

• Power Requirements: 12-42.4 VDC, .25 A @ 24 VDC; 12-36 VAC.
