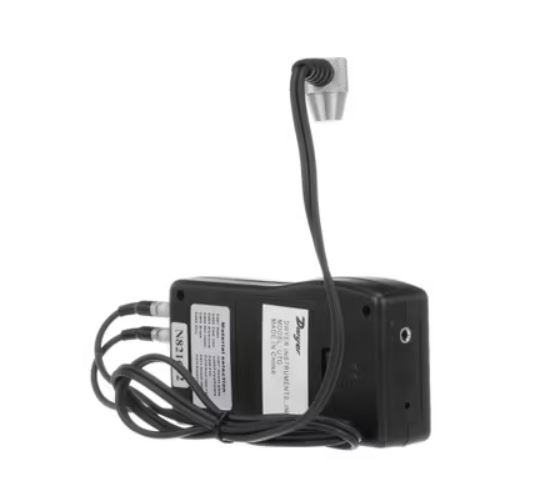

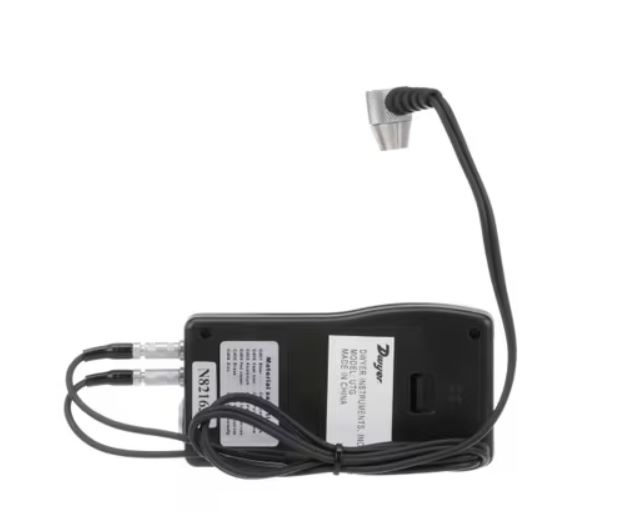

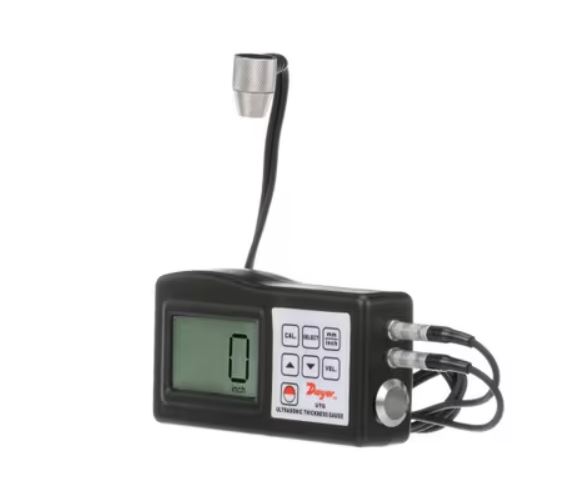

The Model UTG Ultrasonic Thickness Gage measures the thickness of a variety of materials. The UTG works on a variety of parallel surface material ranging from 0.05 to 7.9" (1.2 to 200 mm).

Product Applications

• Pipe Thickness Measurement
• Finding Wall Thickness
• Monitoring Corrosion in Closed Vessels
• Industrial Applications
• Automotive
• HVAC
• Plumbing

Features

• Non-invasive thickness measurement
• Reads in inches or millimeters and features an adjustable sound velocity to allow for an array of materials to be measured
• Allows the user to find the wall thickness of the pipe when programming an ultrasonic transmitter without cutting or removing a section of the pipe to measure it
• Ideal for monitoring corrosion in closed vessels such as boilers and chemical tanks and with any ultrasonic flow transmitter

Specifications

• Ideal For Use with Ultrasonic Flow Transmitters, Adjustable Sound Velocity

• Service : Piping

• Range : 0.047 to 7.874˝ (1.2 to 200 mm).

• Accuracy : ±0.5%.

• Resolution : 0.001˝ / 0.1 mm.

• Sound Velocity : 1118 to 20132 mph (500 to 9000 m/s).

• Temperature Limits : 32 to 122°F (0 to 50°C).

• Display: 4 digits LCD

• Power Requirement: (4) 1.5 V AAA alkaline batteries

Models & Ordering
