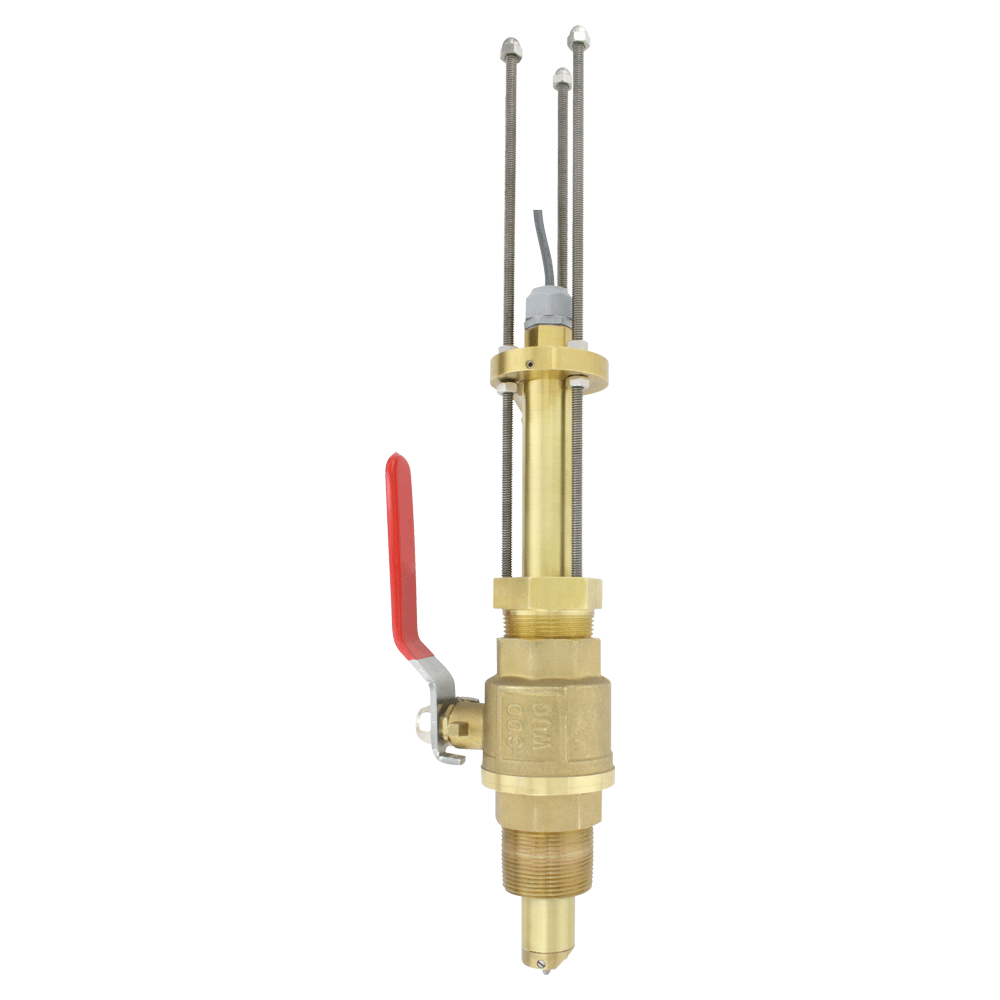

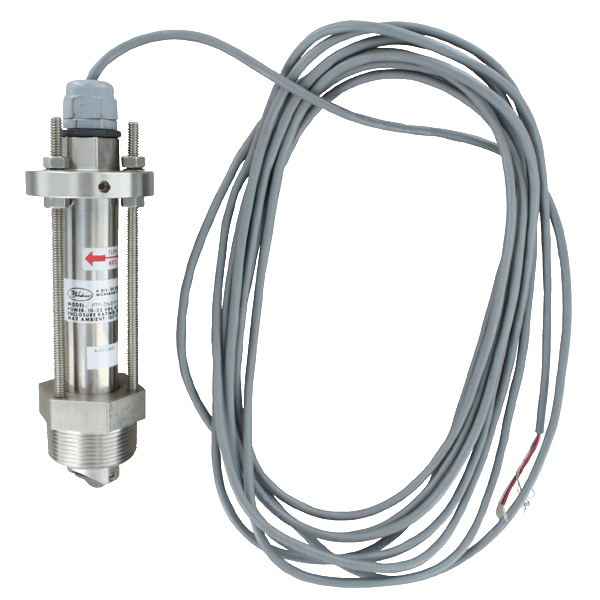

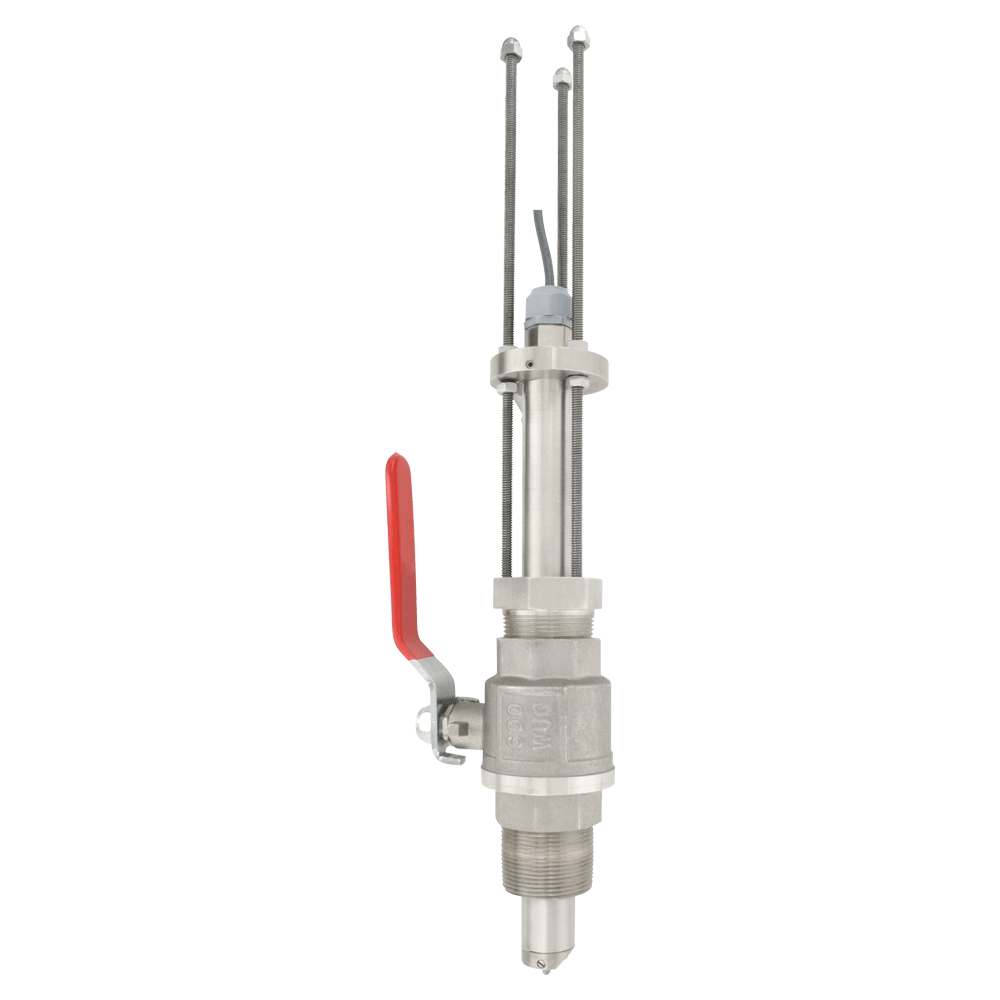

The Series PFT Insertion Paddlewheel Flowmeters are used to monitor liquid flow rates in pipes from 1-1/2 to 40" and is available in brass or 316 SS body. The unit outputs a frequency proportional pulsed or 4 to 20 mA output. The pulse models are a square wave output signal with frequency proportional to the flow velocity and the 4 to 20 mA models have a linear output of the velocity with 4 mA equal to 0 ft/s and 20 mA equal to 25 ft/s.

Product Applications

• Irrigation
• Ground water remediation
• Cooling systems
• Pump protection
• Leak detection
• Filtration systems

Features

• Long product life even in applications with particulate due to bearings and shaft that offer excellent wear protection
• Use in irrigation applications with weatherproof and submersible ratings
• Save time and inventory with one unit that is adjustable over a large pipe size range
• Application versatility with a variety of wetted material selections
• Reduce need for additional external components with integral 4-20 mA output
• Eliminate concerns regarding magnetic material in flow due to sensor technology, which uses inductive sensing and no magnets

Specifications

• Non-Magnetic Sensing, Adjustable for 1-1/2 to 40" (38.1 to 1016 mm) Pipe, Pulse or 4 to 20 mA

• Service : Water-based fluids.

• Range : 1.2 to 25 ft/s (0.37 to 7.62 m/s).

• Wetted Materials : Body and fitting: Brass or 316 SS

• Linearity : ±1.0% of FS.

• Temperature Limits: -40 to 212°F (-40 to 100°C).

• Pressure Limits : 400 psig (27.6 bar) @ 100°F (37.8°C), 325 psig (22.4 bar) @ 212°F (100°C).

• Process Connection : 1-1/2˝ NPT male or 1-1/2˝ BSPT male standard, 2˝ NPT male or 2˝ BSPT male optional.

• Output : Pulse: NPN and 4-20 mA

• Power Requirement : 10-35 VDC

• Enclosure Rating : NEMA 6P (IP67)
