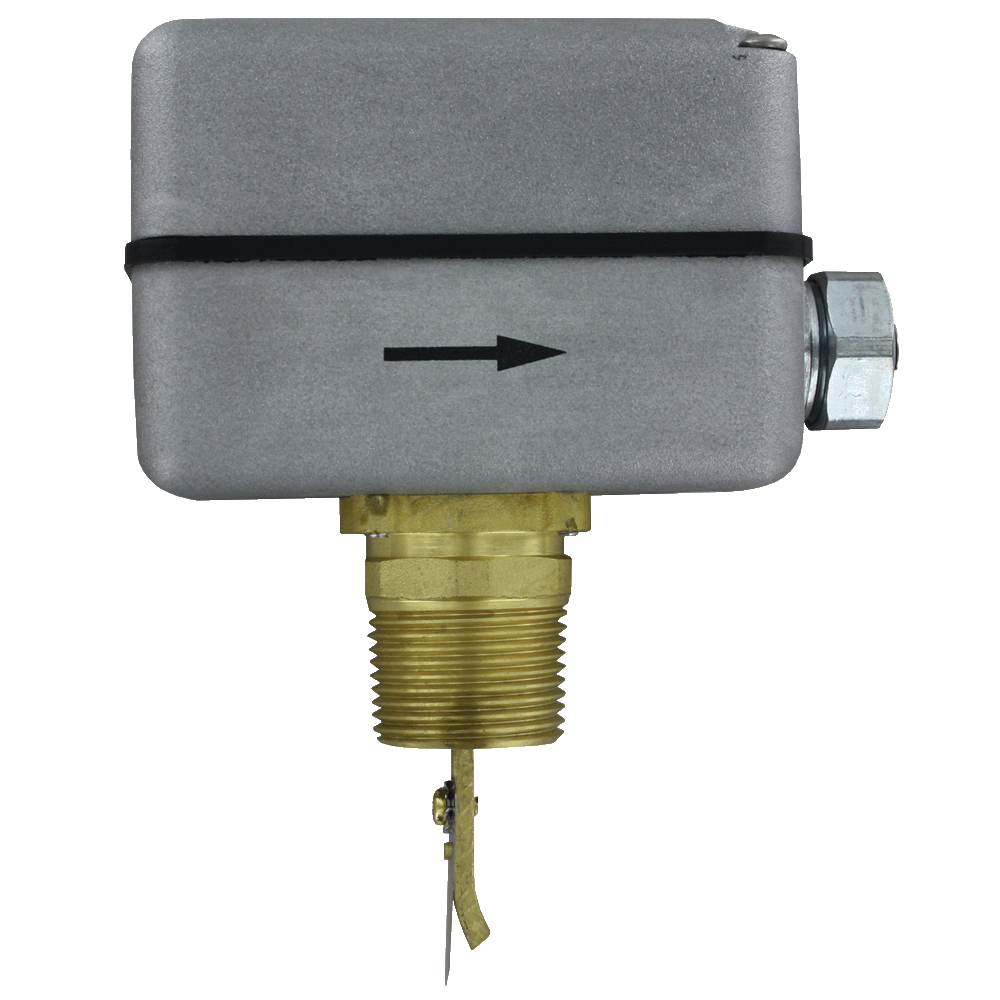

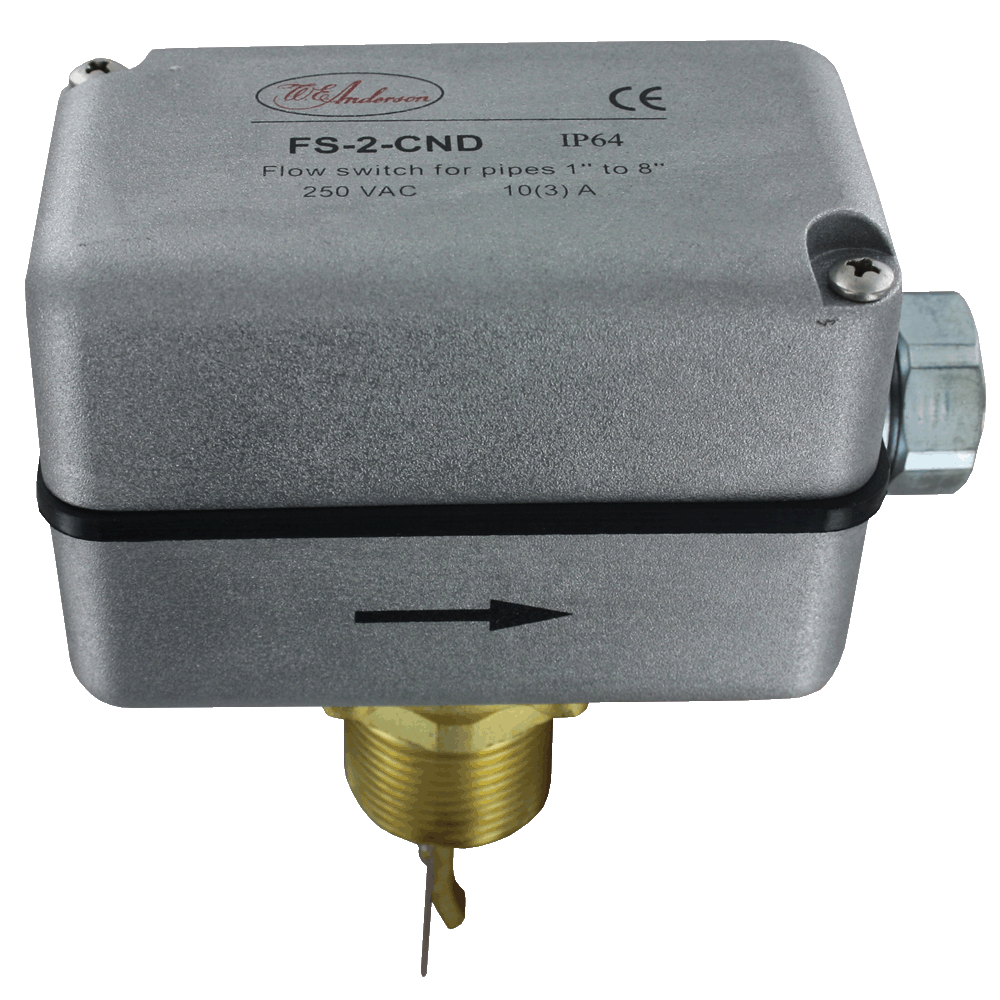

The Series FS-2 Vane Flow Switches offers an economical flow proving solution. The FS-2 paddles are adjustable to fit 1 to 8" size pipe.

Product Applications

• Boiler flow proving
• Hot water heaters
• Chillers
• Cooling lines
• Machinery
• Liquid transfer systems

Features

• Field adjustable set point adjustment screw allows for easy flow switch modification

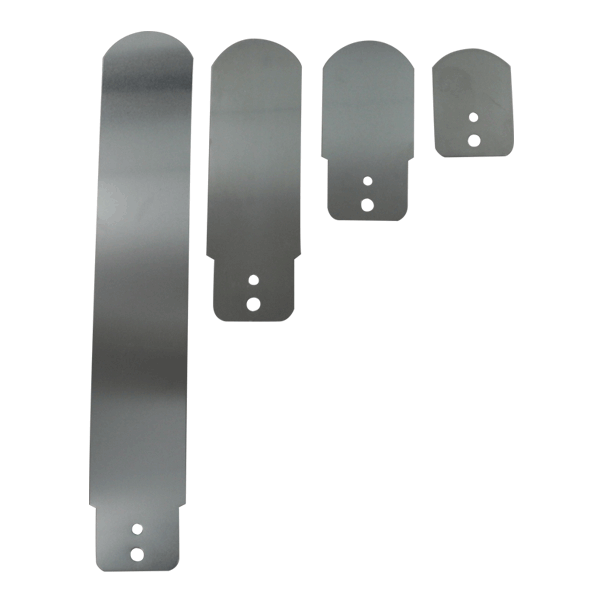

• Custom application set points enabled by field adjustable vane layers
• Aluminum weatherproof housing permits outdoor installation

Specifications

• Low Cost, Field Adjustable Set Point and Paddle

• Service : Compatible liquids.

• Wetted Materials: Bellow: Tin-bronze; Vane: SS; Body: Forged brass.

• Temperature Limit : 230°F (110°C).

• Pressure Limit : 145 psig (10 bar).

• Enclosure Rating : NEMA 4 (IP64).

• Switch Type : SPDT snap switch.

• Process Connection : 1˝ male NPT or BSPT.

• Set Point Adjustment : Four vane combinations and an adjustment screw.
