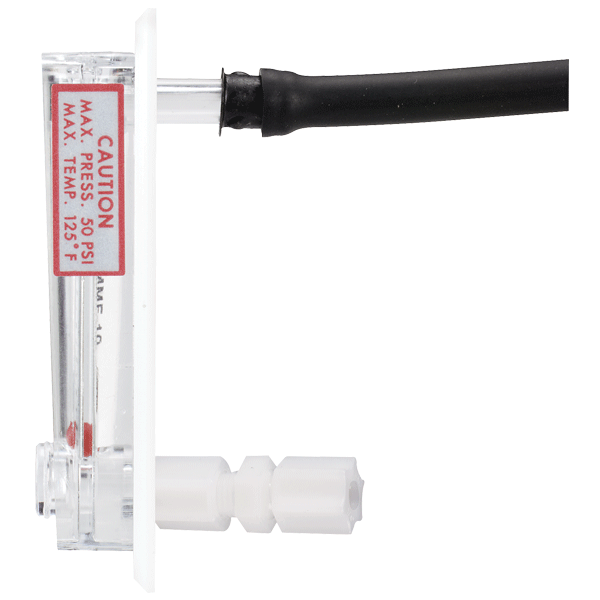

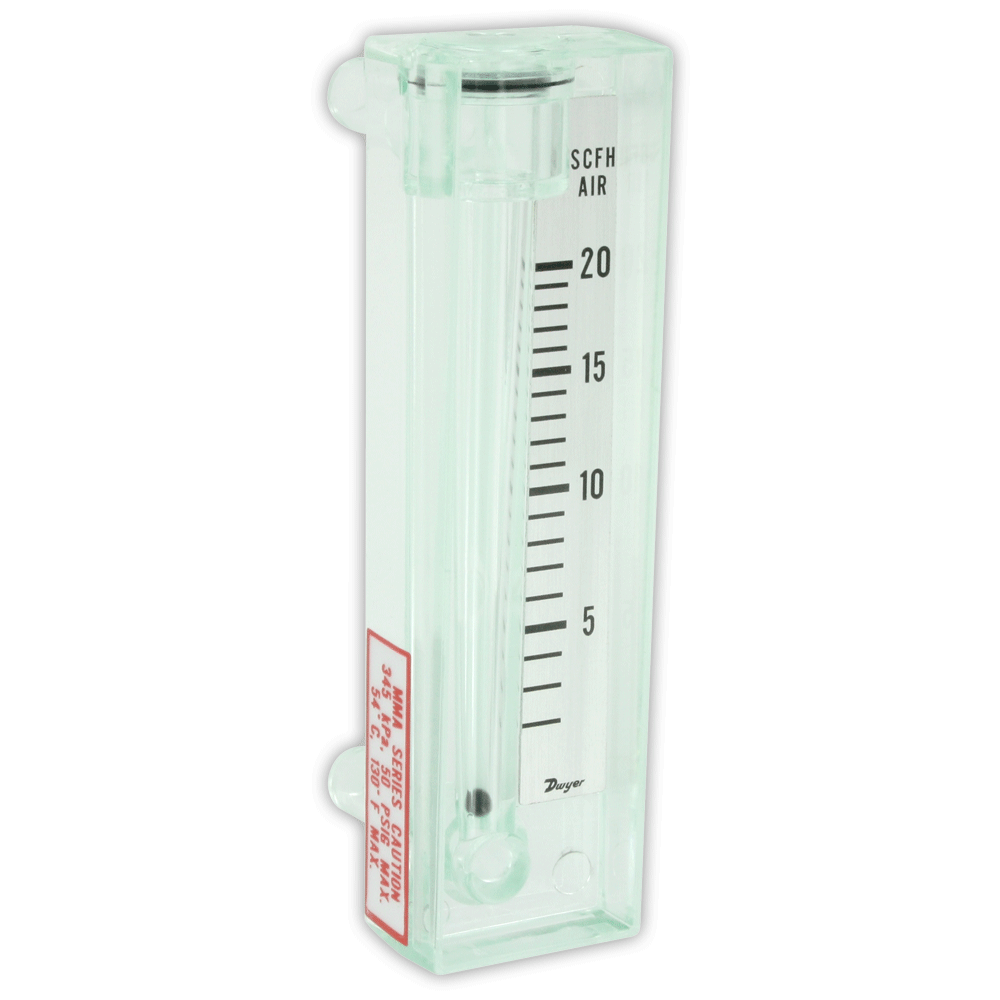

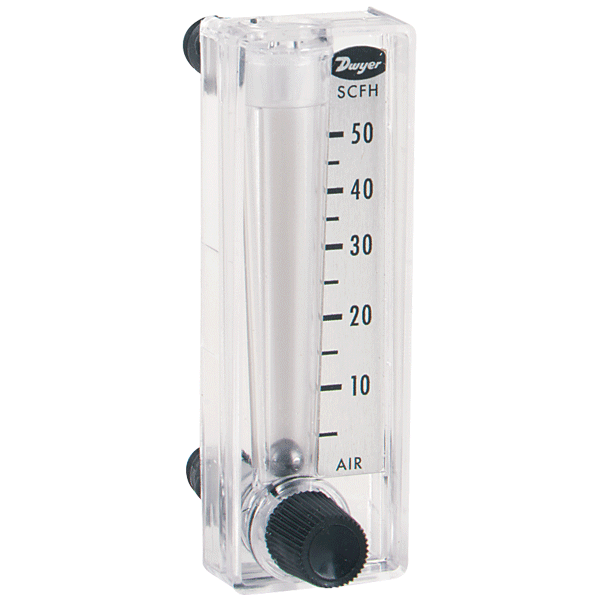

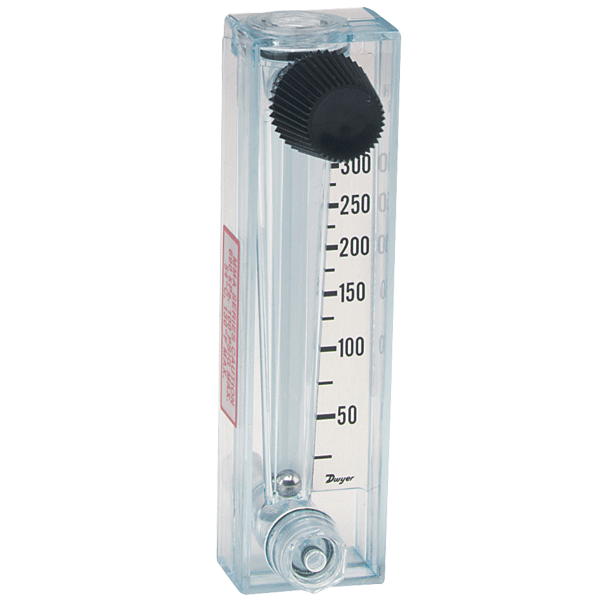

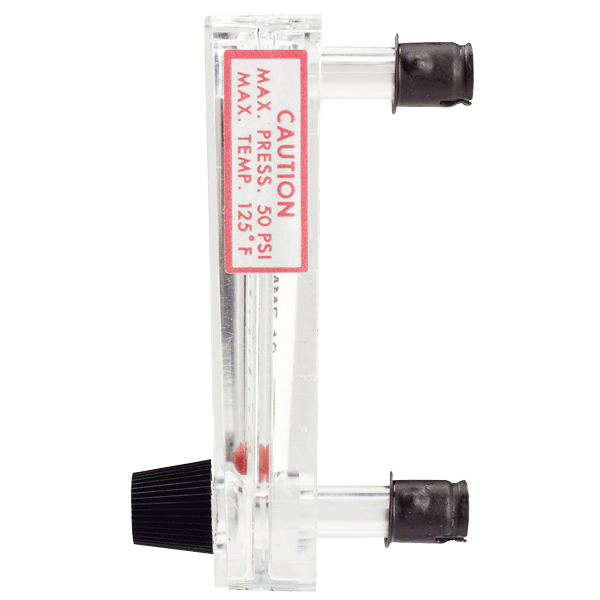

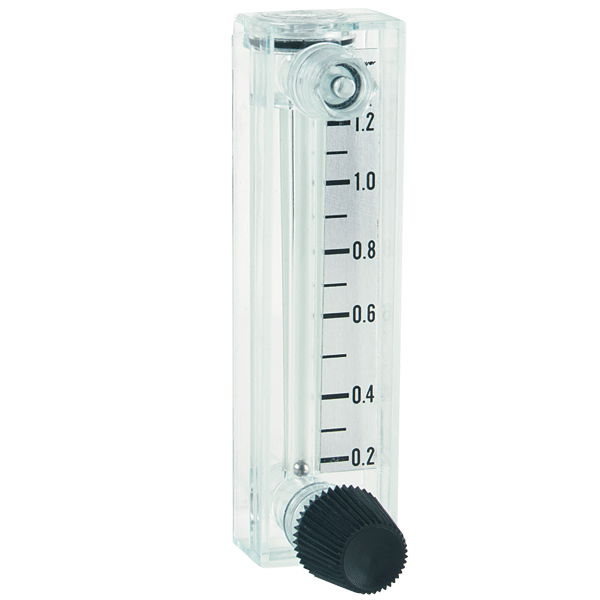

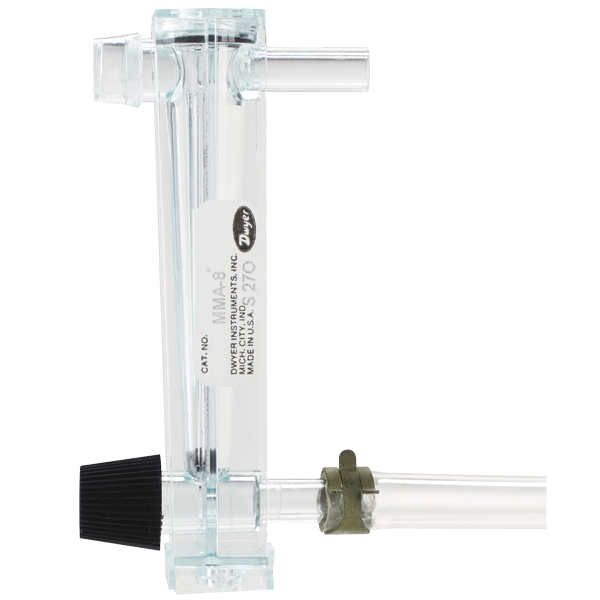

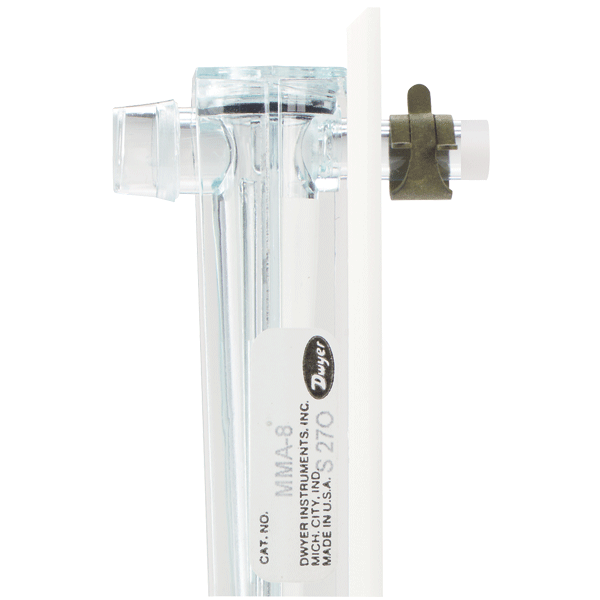

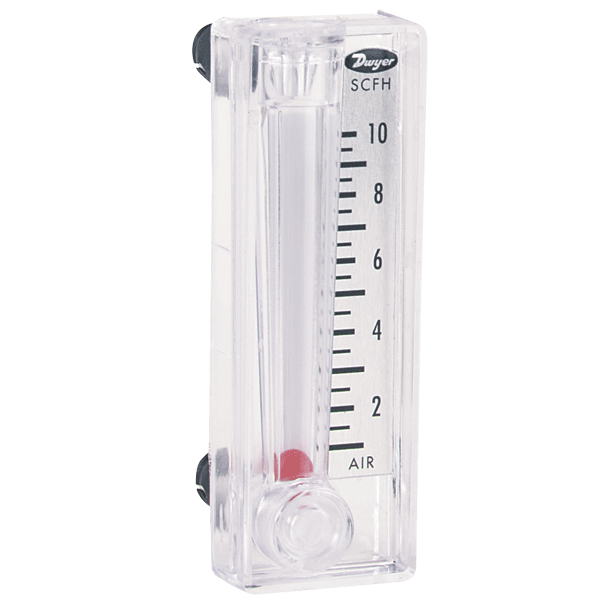

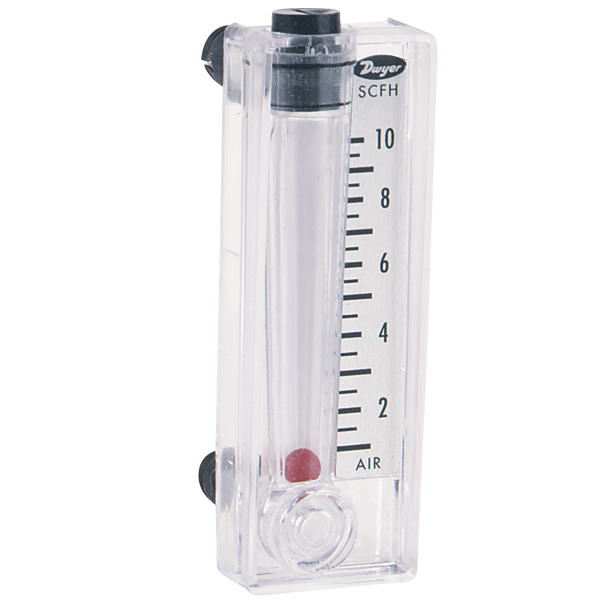

The Series MM Mini-Master® Flowmeters consists of two series of flowmeters suitable for both gas and liquid applications with advanced features at a low cost. The Series MMA is a 2" (51 mm) scale flowmeter that is user configurable with or without non-removable top or bottom front mounted metering valves. It is constructed from transparent nylon material providing high chemical resistance and is easily disassembled via the provided key for cleaning or reconfiguration. The Series MMF is a 1-1/2" (38 mm) scale compact flowmeter ideal for measuring small volume air. It features bezel type mounting that can be quickly installed from the front of the instrument panel.

Product Applications

• Medical equipment
• Air samplers
• Gas analyzers
• Pollution monitors
• Chemical injectors
• Cabinet purging

Features

• Low installation costs with easy mounting
• Long operation life with durable construction
• Precision molding enables high repeatability
• White back on the flow tube allows for better visibility of the float increasing reading accuracy
• Side printed scale graduations allows for instantaneous flow reading saving time
• Compact bodies require minimal panel space freeing valuable space

Specifications

• Service : Compatible gases and liquids.

• Temperature Limit : MMA = 130°F (54°C), MMF = 125°F (51°C).

• Pressure Limit : MMA = 100 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) with tubing clamp, MMF = 50 psi (3.4 bar). Valve option: 10 psi (0.6 bar).

• Accuracy : MMA = ±4% FS, MMF = ±10% FS

• Process Connection : MMA = 5/16˝ OD, MMF = 1/4˝ OD

Models & Ordering
