The Series PMI Particulate Matter Transmitter is designed to measure indoor air quality by detecting particulate matter in an office environment or HVAC duct. Using laser scattering technology, the Series PMI can measure particles as small as 0.3 µm, making it an essential component of any indoor air quality monitoring system. The optional relay combined with the settable alarm and control parameters allow the Series PMI to be a stand-alone controller.

Product Applications

• Educational institutions
• Healthcare facilities
• Corporate offices
• Hotels/restaurants
• Air purifiers

Features

• Maintains healthy air supply with long term stability and accuracy

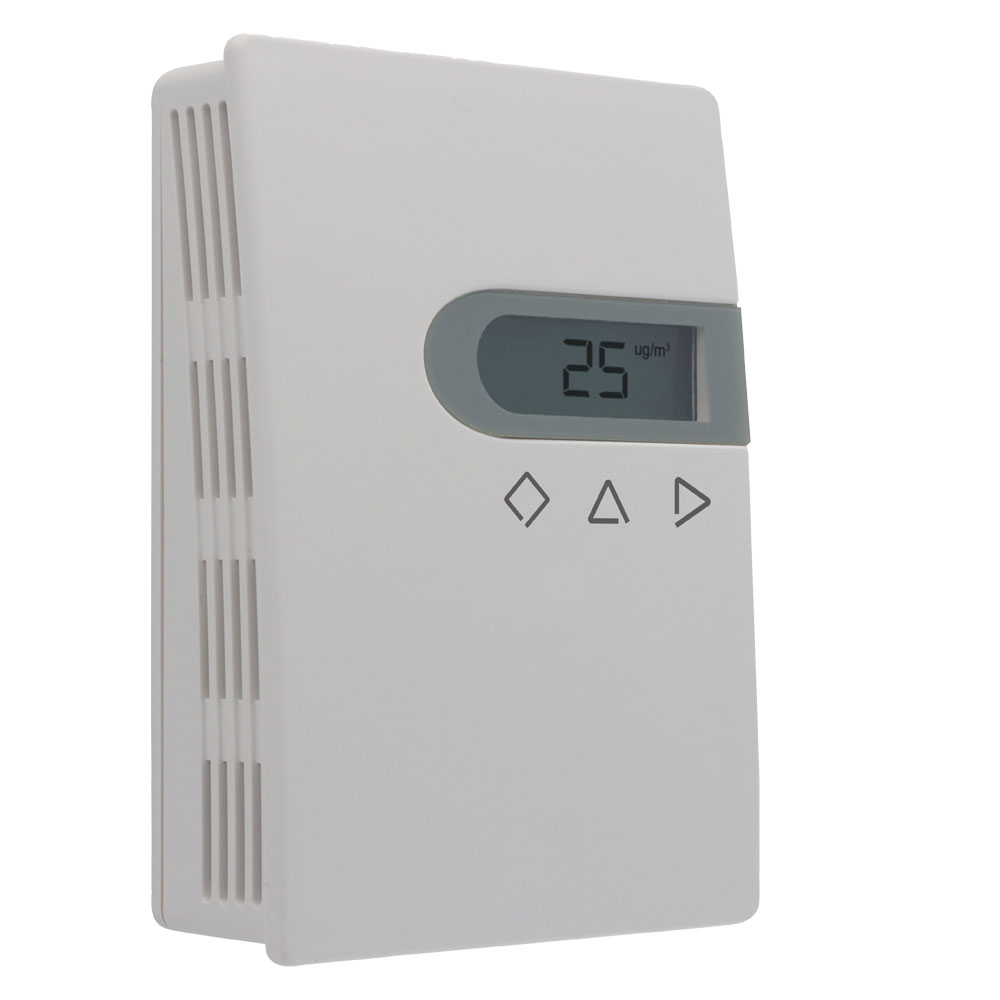

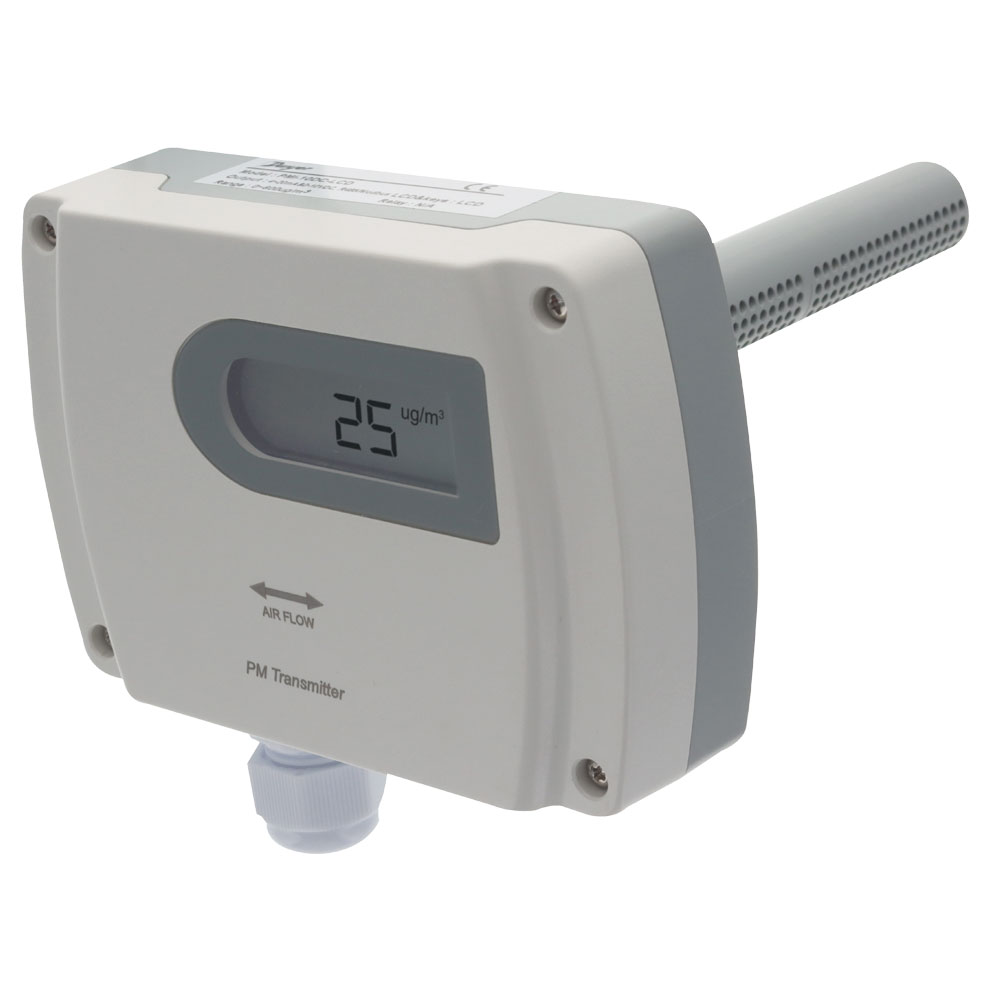

• Particulate matter application independent as duct and wall mount units are available
• Low maintenance with 10 years of service life in auto mode
• Minimal downtime with overvoltage protection
• Easy setup with optional integral display and buttons
• Saves time using removable terminal block on duct mount model
• Single unit controller with alarm, control modes, and optional relay

Specifications

• PM 2.5/10 Transmitter/Controller

• Range : PMI-2.5: 0-500 μg/m3, particle size 0.3-2.5 μm; PMI-10: 0-600 μg/m3, particle size 0.3-10 μm.

• Accuracy : ±10 μg/m3 @ 0-100 μg/m3; ±10% reading @ 100-600 μg/m³ @ 25°C, 50% RH.

• Temperature Limits : Operating: 32 to 122°F (0 to 50°C); Storage: -22 to 158°F (-30 to 70°C).

• Humidity Limits : 0-95% RH (non-condensing).

• Power Requirements : 16-28 VAC/6-35 VDC.

• Output : Current: 4-20 mA; Voltage: 0-10 VDC; Relay: SPST 3A, 30 VDC/250 VAC; RS-485/Modbus (RTU).

• Display : Optional 4-digit LCD.

• Housing Materials : Wall mount: Polycarbonate (UL 94 V-0); Duct mount: ABS and polycarbonate (UL 94 V-0).

• Enclosure Rating : Wall mount: IP30; Duct mount: IP65 (housing), IP30 (probe)
