Features

• Wide application environment with ability to operate in air speeds of 100 FPM (0.5 m/s) to 4000 FPM (20 m/s)

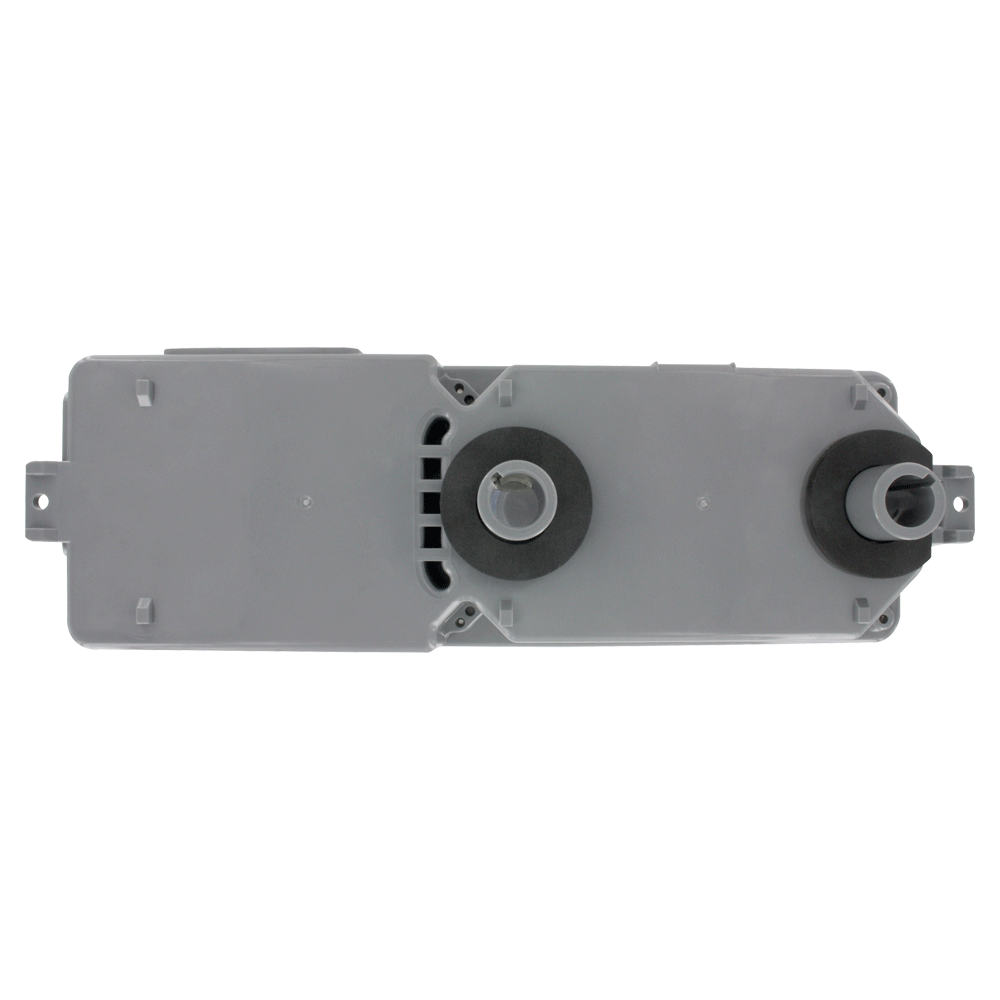

• Simple installation with the patented “No-Tools Required” front or rear installation of sampling/exhaust tubes

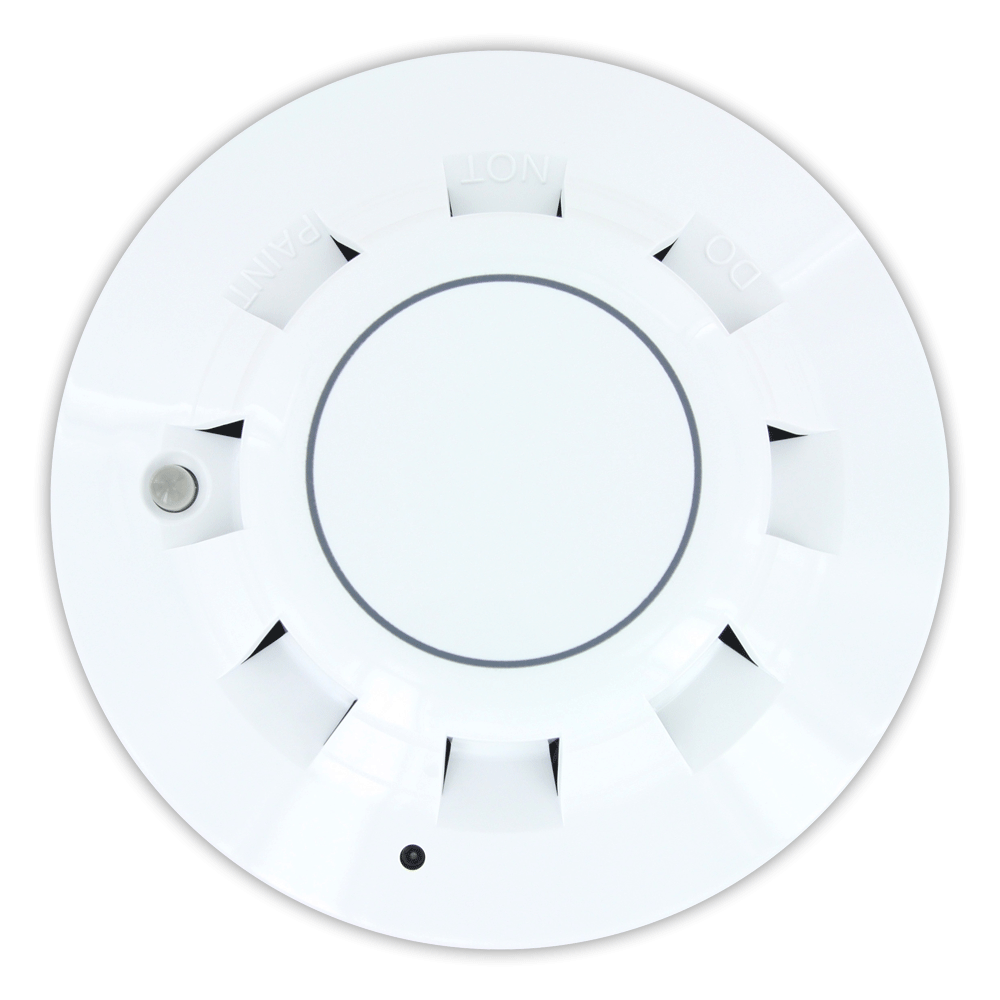

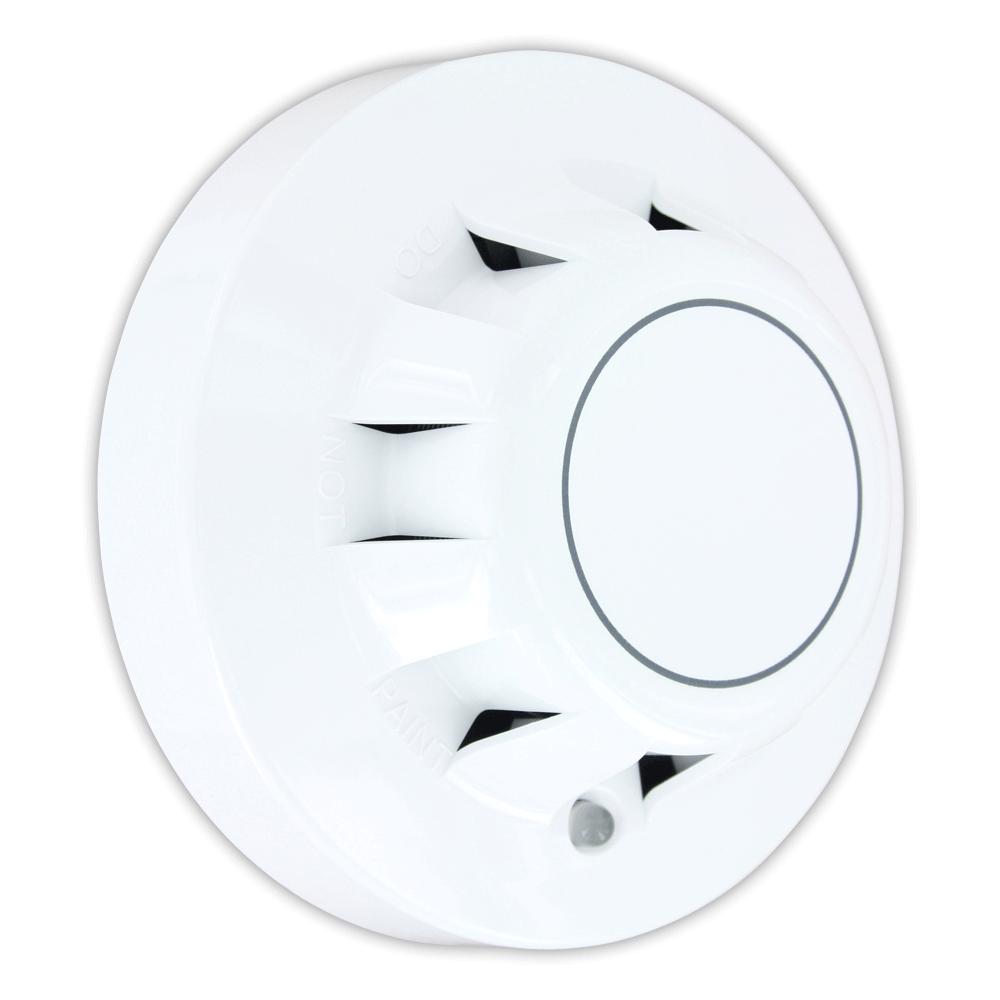

• Easy visual status determination with transparent cover to view detector head LED
• Reduced installation costs with integrated relays for connecting to alarm devices
• Quick verification testing with integrated smoke test port

Specifications

• Early Smoke Detection in HVAC Systems

• Sensor Type : Photoelectric or Ionization.

• Air Velocity Range : 100 to 4000 FPM.

• Ambient Temperature : 32 to 140°F (0 to 60°C).

• Humidity Limits : 10-85% RH. Non-condensing/non-freezing.

• Power Requirements : Standby: 230 VAC (12 mA), 115 VAC (22 mA), 24 VAC (55 mA), or 24 VDC (14 mA); Alarm: 230 VAC (18 mA), 115 VAC (32 mA), 24 VAC (190 mA), or 24 VDC (68 mA).

• Electrical Rating : Alarm contacts: 2 sets form “C” rated at 10 A resistive @ 115

• VAC and 1 set form “A” rated at 2 A; Trouble contacts: 1 set form “C” rated at 10 A @ 115 VAC

• Enclosure Rating : SL-2000: NEMA 1; WP-2000: NEMA 3R.
