The Series CDT Carbon Dioxide and Temperature Transmitters accurately monitor the CO2 concentration and temperature in indoor environments to help achieve energy savings. In order to achieve a higher level of accuracy, the Series CDT includes barometric pressure adjustment. The CO2 universal output allows users to select the transmitter output to be 4-20 mA, 0-5 VDC, or 0-10 VDC to work with virtually any building management controller.

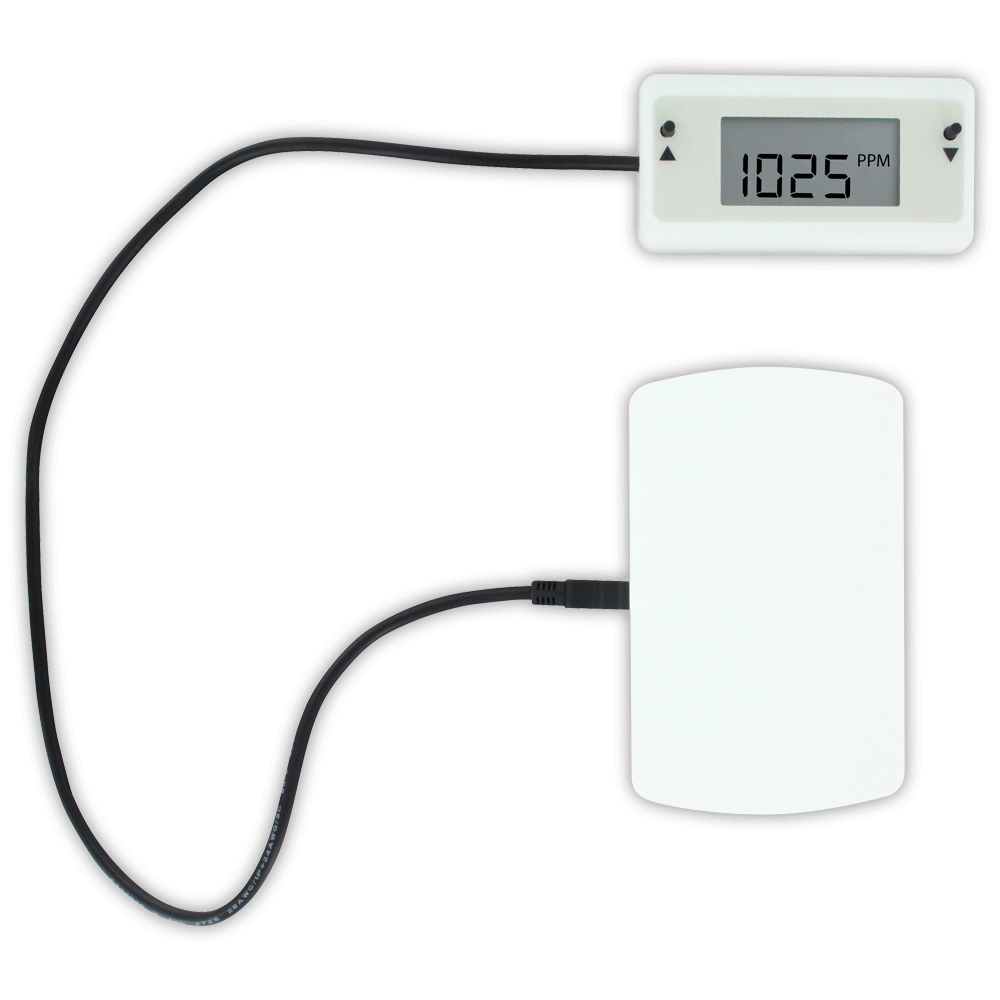

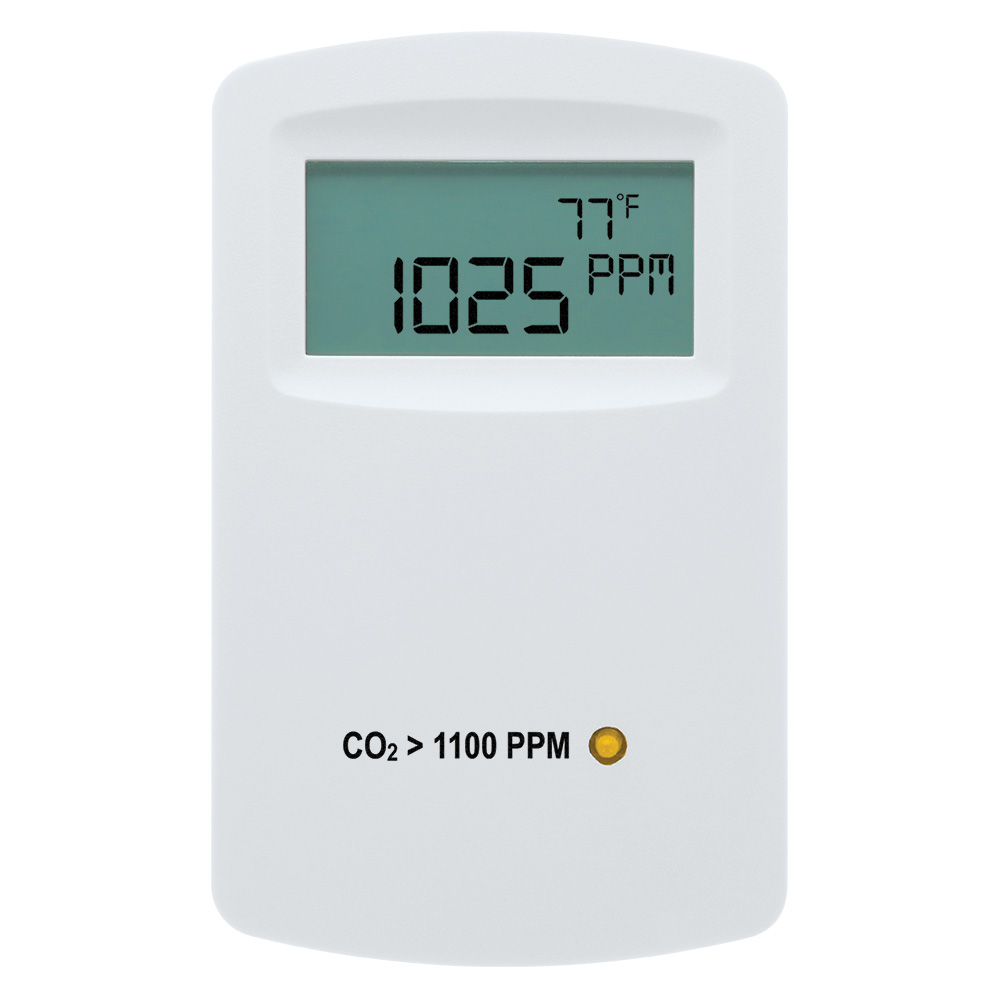

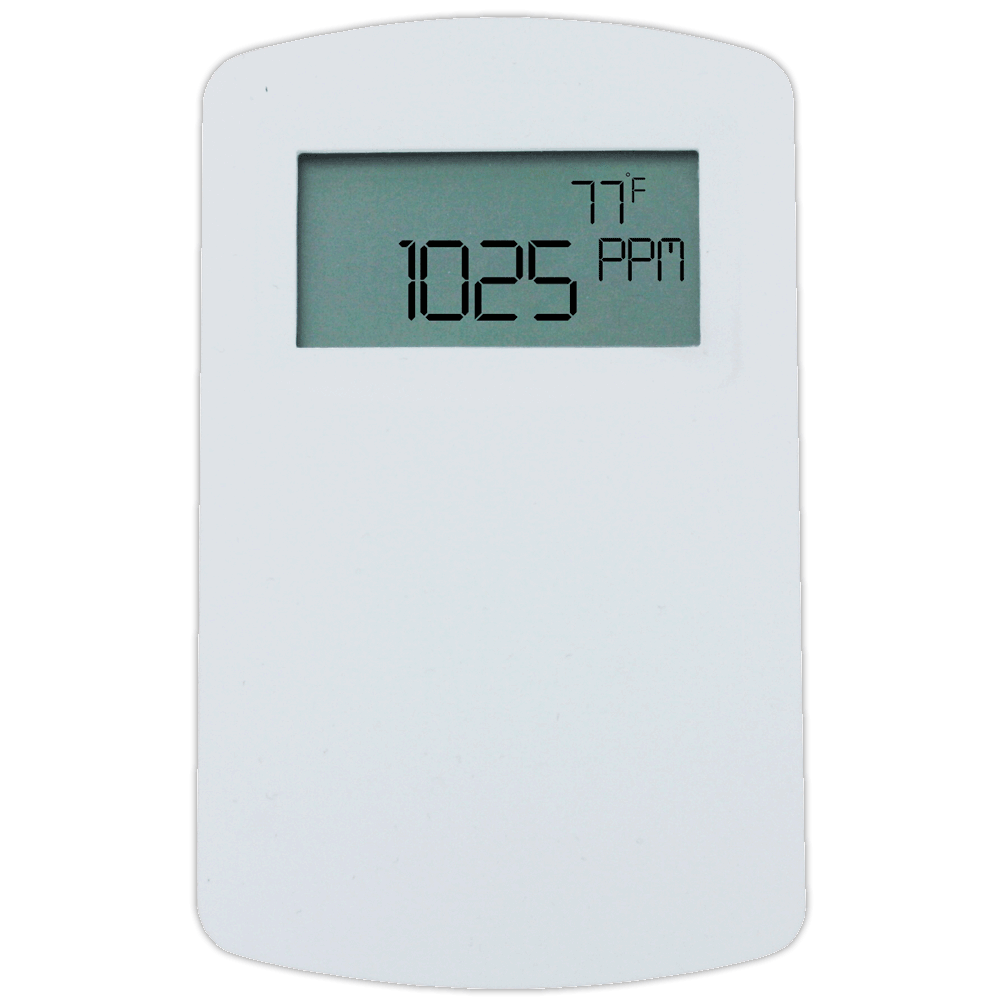

For applications that require visual indication, the wall mount configurations of the Series CDT can be ordered with an integral LCD display. To prevent tampering, the action of the buttons can be locked out using an internal dip switch selection. The Series CDT CO2 transmitters are available with a -S option that provides the necessary attributes and parameters to be complaint with DSA requirements for monitoring CO2 levels in schools. There is a front facing LED that illuminates when the CO2 level exceeds 1100 PPM.

Product Applications

• Demand control ventilation in schools, office buildings, hospitals, and other indoor environments
• LEED® certification

Features

• Minimize inventory and save time by combining CO2 and temperature measurements into one transmitter
• Reduces the number of devices mounted in the space with integral humidity and temperature sensors
• Requires minimal maintenance with Automatic Baseline Correction (ABC) to account for sensor drift
• Reduce operation costs using a low energy, reliable, and repeatable CO2 sensor
• Simplify installation with backplate electrical connection

Specifications

• NDIR CO2 Sensor, Universal Outputs, Optional Relay
• Configuration : Wall mount and Duct mount
• Range: CO2 : 0 to 2000 or 0 to 5000 PPM
• Accuracy : CO2: ±40 PPM + 3% of reading (2000 PPM CO2); ± 50 PPM + 5% of reading (5000 PPM CO2); Temperature: ±1°C @ 25°C.
• Temperature Limits : 32 to 122°F (0 to 50°C).
• Humidity Limits : 0 to 85% (non-condensing).
• Power Requirements : 16-35 VDC or 19-28 VAC.
• Output : 4-20 mA, 0-5 VDC or 0-10 VDC
• Relay : SPST Option
