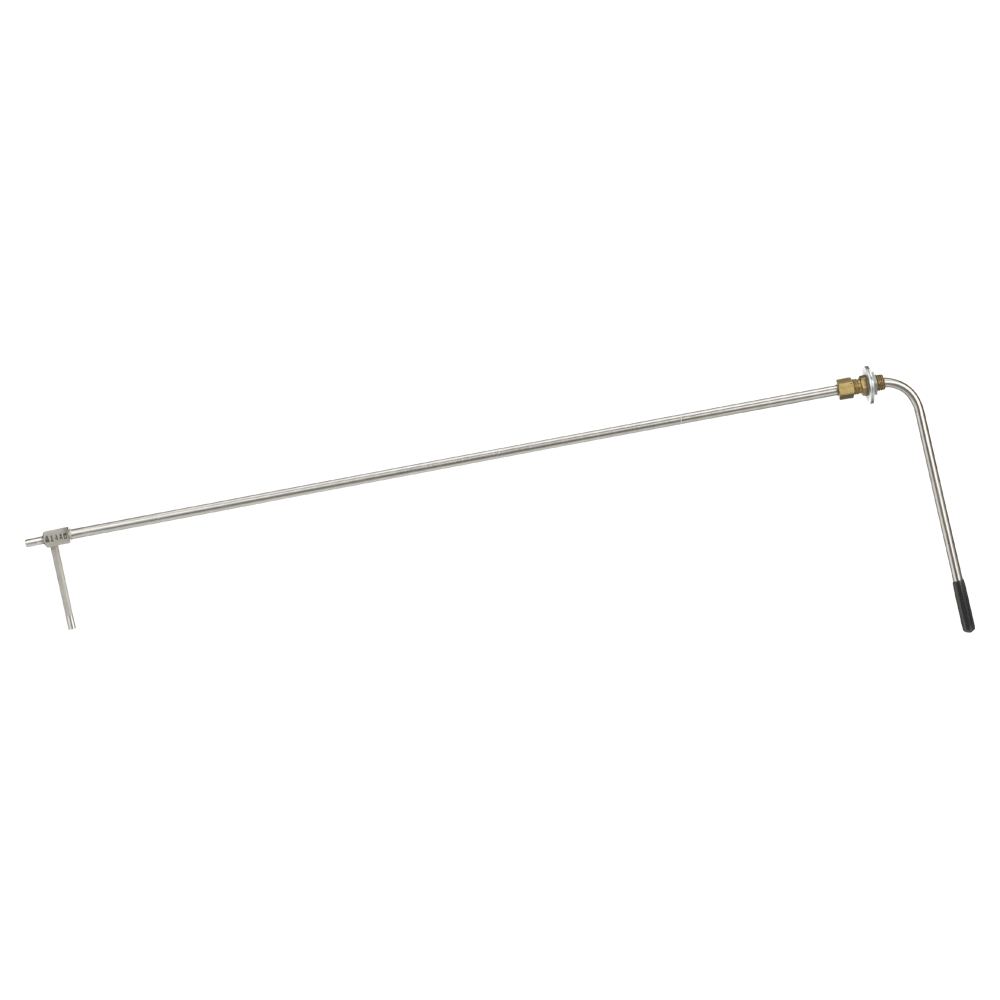

The Series 160 Stainless Steel Pitot Tube is constructed from corrosion resistant stainless steel with permanently etched insertion depth graduations for a lifetime of service. The static pressure port is parallel to the sensing tube to allow quick, easy alignment of the tube with air flow. A universal model fits the user supplied 3/4" schedule 40 pipe in any length.

Product Applications

• Monitor or control air velocity or air flow when combined with differential pressure gage, switch or transmitter

Features

• Low sensitivity to misalignment up to 15 degrees
• No calibration needed due to ASHRAE tip design
• Silver soldered connections for leak-proof operation
• 5/16" models rated to 1500°F (815.5°C)

Specifications

• Constructed from corrosion resistant stainless steel with permanently etched insertion depth graduations for a lifetime of service
• Insertion Length : 6" to 96"

Models & Ordering
